TECHNICAL SPECIFICATIONS
Overall Length
105.00m
Beam
26.00m
Maximum Draft
4.70m
Year Built
0000
Accommodation
212 Persons
Dynamic Positioning
DP2 System
Vessel Summary

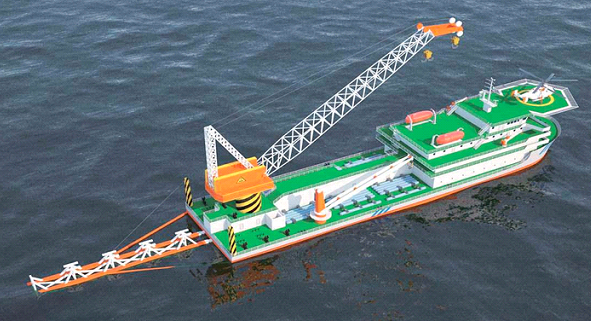

This is a high-specification, DP2-enabled offshore vessel designed for complex pipelay, heavy-lift construction, and large-scale accommodation projects. Combining advanced positioning technology with robust lifting and production capabilities, it is a premier choice for demanding maritime infrastructure operations.
Core Vessel Specifications
⦁ Classification: CCS - DP2.
⦁ Dimensions: Length Overall (LOA) of 105m (excluding stinger) and a moulded breadth of 26m.
⦁ Draft & Tonnage: Features a transit draught of 2.7m–4.7m and a gross tonnage of 7,677t.
⦁ Main Deck Area: Offers 1,280 m² of free deck space for versatile project cargo and equipment.
⦁ Transit Speed: Efficient mobilization at 11.2 knots.
Advanced Heavy-Lift & Mooring Systems
⦁ Heavy Lifting: Equipped with a main crane capable of 300t lifting capacity (revolving) with a maximum lifting height of 58m.
+1
⦁ Auxiliary Cranage: Includes a 30t starboard deck crane with 360° endless slewing.
+1
⦁ Dynamic Positioning: Integrated PRAXIS Class 2 redundant DP system supported by dual DGPS, wind sensors, and motion reference units.
+1
⦁ Mooring System: 8-point mooring system utilizing Amclyde Model 6000-M2 winches and 1,500m of steel wire rope.
Specialized Pipelay & Construction Infrastructure
⦁ Pipelay Capacity: Optimized for pipe sizes ranging from 4” to 60” in diameter (including coating).
⦁ Production Line: Features a main firing line with 4 welding stations, 1 NDT station (X-ray/Ultrasonic), and 1 coating station.
+2
⦁ Tensioning & Control: Equipped with a 120t tensioner system and a 120t A&R winch for precision installation.
+1
⦁ Subsea Cable Laying: Integrated system for laying steel armored cables (50mm to 200mm O.D.).
Accommodation & Safety
⦁ Personnel Capacity: High-quality living quarters for 212 persons, fully air-conditioned throughout.
⦁ Facilities: Includes spacious galley/mess rooms, laundry, offices, conference rooms, recreation facilities, and a dedicated hospital/treatment room.
+1
⦁ Aviation: Features a bow-mounted helideck designed to API-RP-2L standards, suitable for Bell 412EP or equivalent aircraft.
+3
⦁ Safety Compliance: Fully compliant with SOLAS 74/83 standards, featuring enclosed lifeboats and comprehensive fire-fighting systems
