TECHNICAL SPECIFICATIONS
Overall Length
103.15m
Beam
23.0m
Maximum Draft
7.00m
Year Built
2016
Accommodation
120 Berths
Dynamic Positioning
DP2 System
Vessel Overview

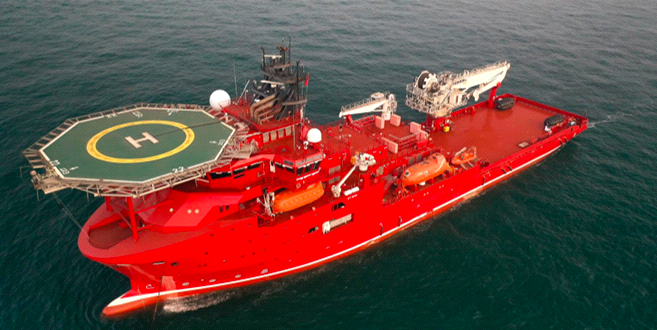

DSV Van Gogh is a modern DP2 Diving Support and Subsea Construction Vessel designed by Marin Teknikk for global offshore operations. The vessel features diesel‑electric propulsion with highly efficient azimuth thrusters, a dynamic positioning system, and a fully integrated saturation diving system. With excellent seakeeping performance, low fuel consumption and reduced emissions, the vessel is ideally suited for offshore diving, subsea construction and field support projects worldwide.
Key Commercial Highlights
DP2 Dynamic Positioning System (Kongsberg)
12-Man Saturation Diving System rated to 300m
150t Active Heave Compensated Offshore Crane
Moonpool for dive bell operations
ROV capability with LARS systems
Large working deck approx. 800 m²
Accommodation for 120 personnel
Helideck rated for Sikorsky S92
Diesel‑electric propulsion for efficient offshore operations
Main Dimensions
Classification
Length Overall (LOA) 103.15 m
Length Between Perpendiculars 95.25 m
Beam 23.00 m
Depth Main Deck 10.00 m
Depth Shelter Deck 12.80 m
Max Draft 7.00 m
DNVGL +1A1 SPS E0 Dynpos AUTR DK(+) HELDK‑SH COMF‑V(3) CLEAN DESIGN DSV‑SAT DSV SURFACE CRANE ICE‑C NAUT OSV(A) BWM‑T RECYCLABLE
Flag: TBA
Diving & Subsea Equipment
Propulsion & Power
12‑man single bell saturation diving system rated to 300 msw
Air diving system
Moonpool 3.9 m × 3.9 m
2 × independent Launch & Recovery Systems
WROV and Observation ROV capability
4 × MAN 7L32/40 Main Generator Sets – 3380 kW each
Total Installed Power – 13,520 kW
1 × CAT C32 Emergency Generator – 910 kW
Diesel‑electric propulsion with frequency, controlled azimuth thrusters
Deck Equipment
Thrusters
2 × Azimuth Propellers – 3000 kW each
3 × Bow Tunnel Thrusters – 1800 kW each
1 × Retractable Thruster – 1200 kW
1 × 150t Active Heave Compensated Offshore Crane
1 × 20t Telescopic Crane
1 × 10t Deck Crane
2 × Provision/Service Cranes
Accommodation
Working Deck Area approx. 800 m²
Deck Load Capacity up to 10 t/m²
Cargo Deck Width: 23 m
Removable bulwark for flexible deck operations
Cargo & Deck
Accommodation for up to 120 personnel in a combination of single and double cabins including client offices, conference rooms, hospital, gymnasium and recreational facilities.
Helideck
Tank Capacities
Fuel Oil approx. 1150 m³
Fresh Water approx. 1000 m³
Ballast Water approx. 5000 m³
Anti‑Heeling Tank approx. 1050 m³
Lubricating Oil approx. 50 m³
Aluminium helideck rated for Sikorsky S92 helicopter operations in accordance with IMO and CAP437 offshore aviation regulations
Specifications believed correct but not guaranteed. Subject to verification and availability.
